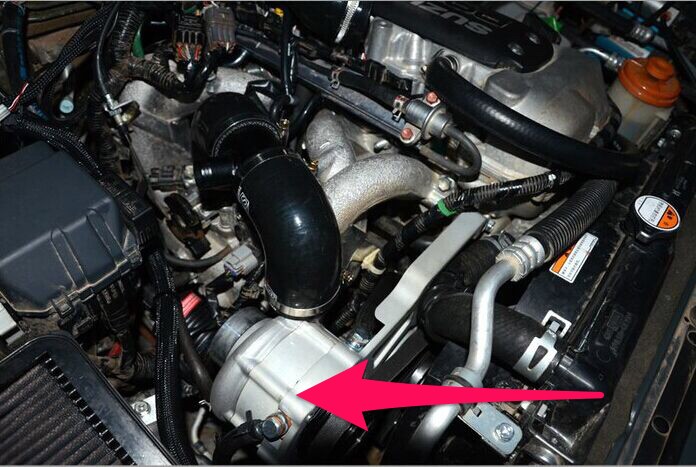

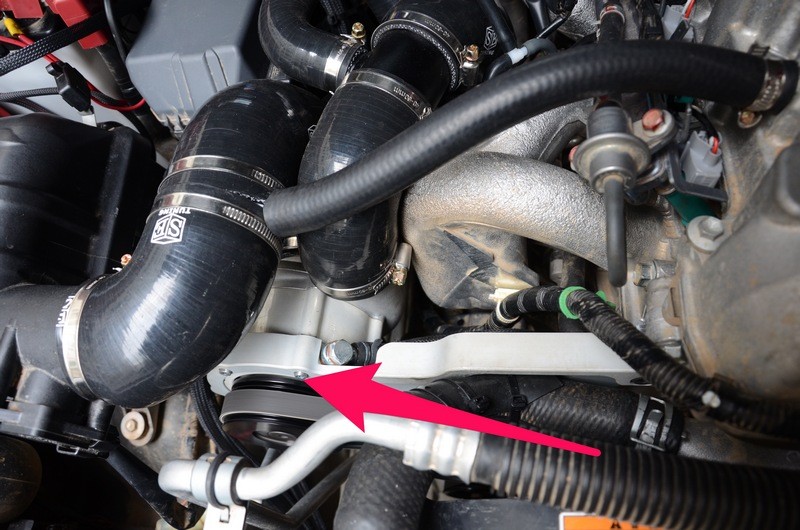

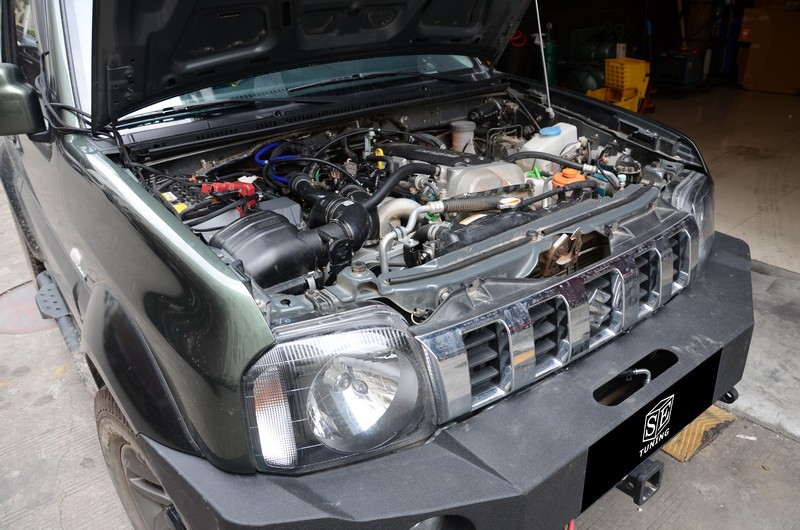

The image below shows the installed supercharger, with the arrow indicating the supercharger unit.

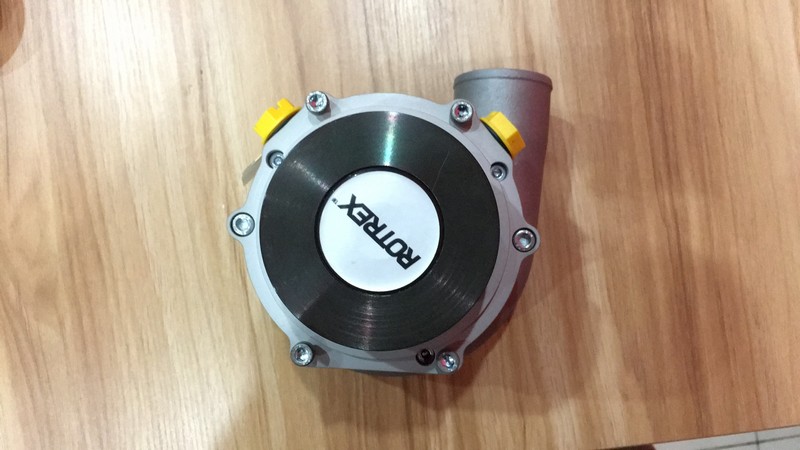

there is ROTREX supercharger below:

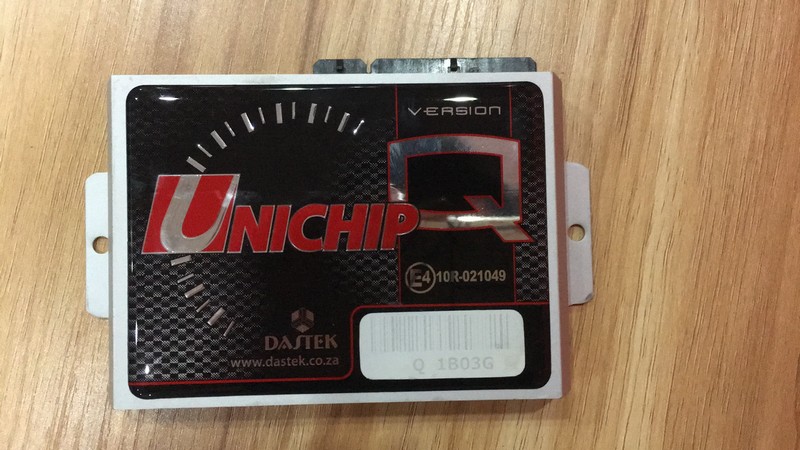

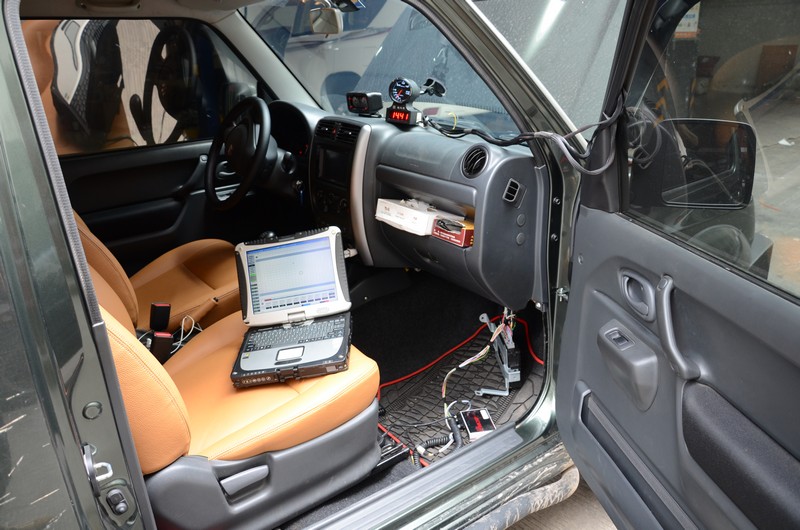

The kit includes high-flow fuel injectors, a high-performance air filter, a blow-off valve, and an Unichip ECU. The installation is actually quite extensive, and ECU tuning requires specialized technical expertise - it's highly professional work.

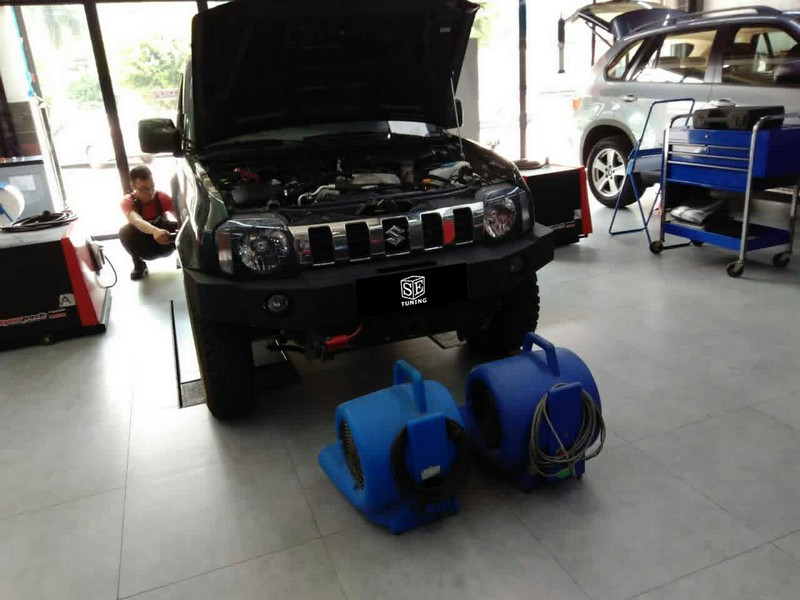

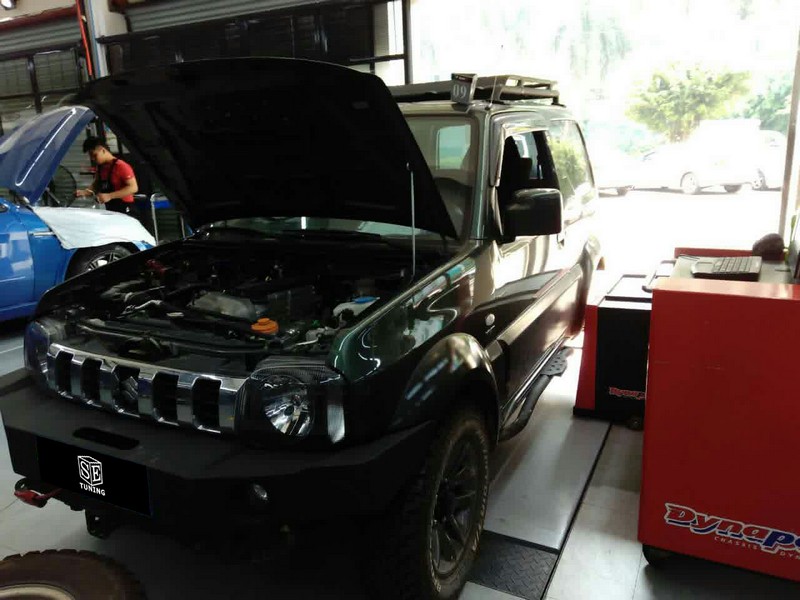

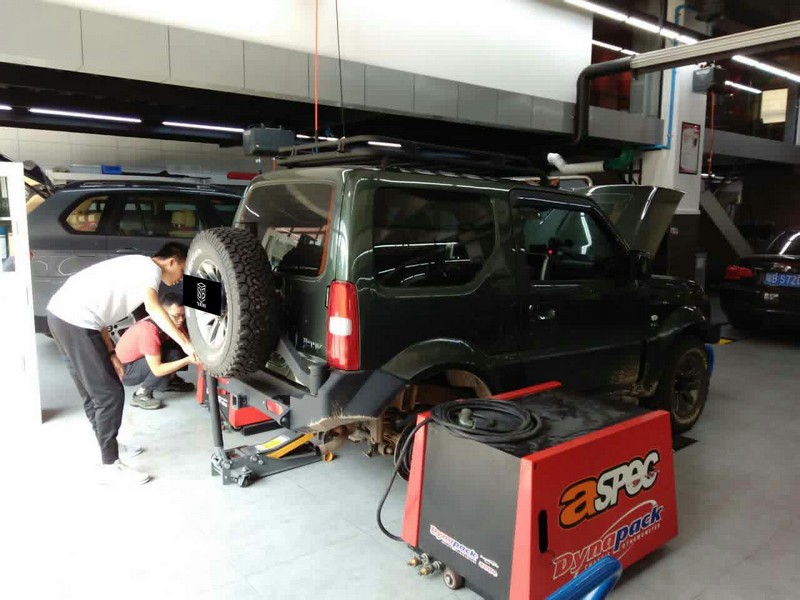

After completing the hardware installation and software tuning, we put the vehicle on the dyno for real-world performance testing. After all, "the proof of the pudding is in the eating" - you'll know exactly what it's capable of when you put it to the test.
Here's a comparison of performance data before and after the modification:
Horsepower:
-
Stock: 84 PS
-
Upgraded: 126 PS (+50%)
Torque:
-
Stock: 110 N·m
-
Upgraded: 152 N·m (+38%)
The supercharger delivers a stable power increase, with post-installation fuel consumption remaining close to stock levels. Beyond the significant boost in power, low-end torque and acceleration are noticeably improved.
While the Jimny is a compact off-roader, this power upgrade injects new excitement into its performance. Whether tackling trails or long-distance drives, the enhanced powertrain delivers a completely refreshed experience.
